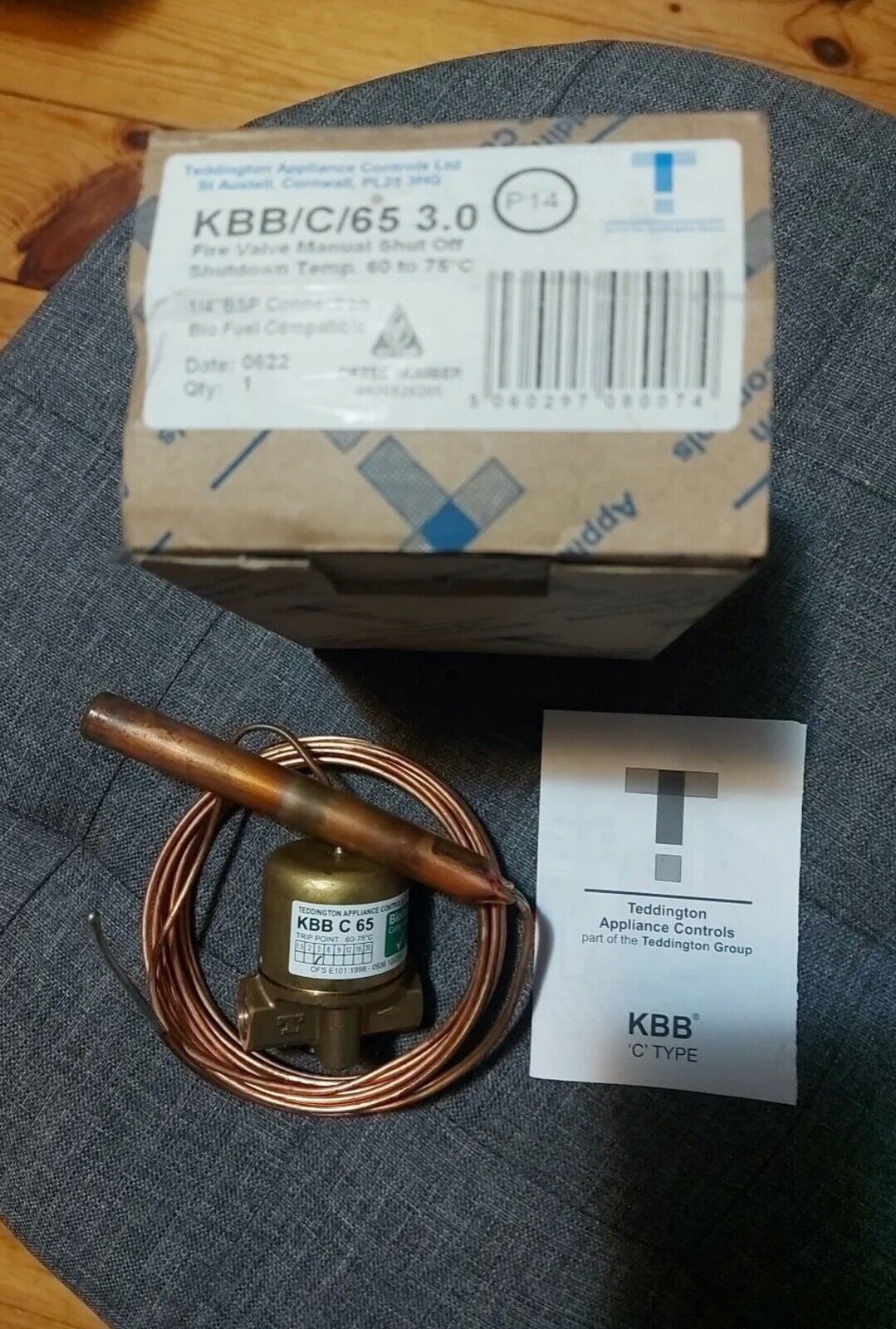

TEDDINGTON KBB C65 OIL FIRE VALVE & SENSOR 3 METER MANUAL SHUT OFF

3 METER TEDDINGTON FIRE VALVEKBB/C/65 65°CKBB FIRE VALVEFIRE PROTECTION WITH A UNIQUE PEDIGREETHERE ARE NOT MANY FIRE PROTECTION VALVES FOR OIL FIRED APPLIANCES THAT CAN CLAIM KINSHIP WITH SOME OF THE MOST ILLUSTRIOUS NAMES IN BRITISH ENGINEERING. THE KBB RANGE OF FIRE VALVES FROM TEDDINGTON COLLABORATED WITH ROLLS ROYCE TO PRODUCE AN EXPERIMENTAL THERMOSTAT FOR THEIR CARS, AND ON THROUGH THE 1940S WHEN TEDDINGTON EQUIPMENT PLAYED A VITAL ROLE IN THE RAF'S SPITFIRE AND HURRICANE FIGHTERS. SINCE THEN THE TEDDINGTON NAME HAS STOOD CONSISTENTLY FOR QUALITY, INNOVATION, RELIABILITY AND DEPENDABILITY - WHICH IS WHY IT MAKES SENSE FOR INSTALLERS TO CHOOSE THE KBB FIRE SAFETY SHUTOFF VALVE

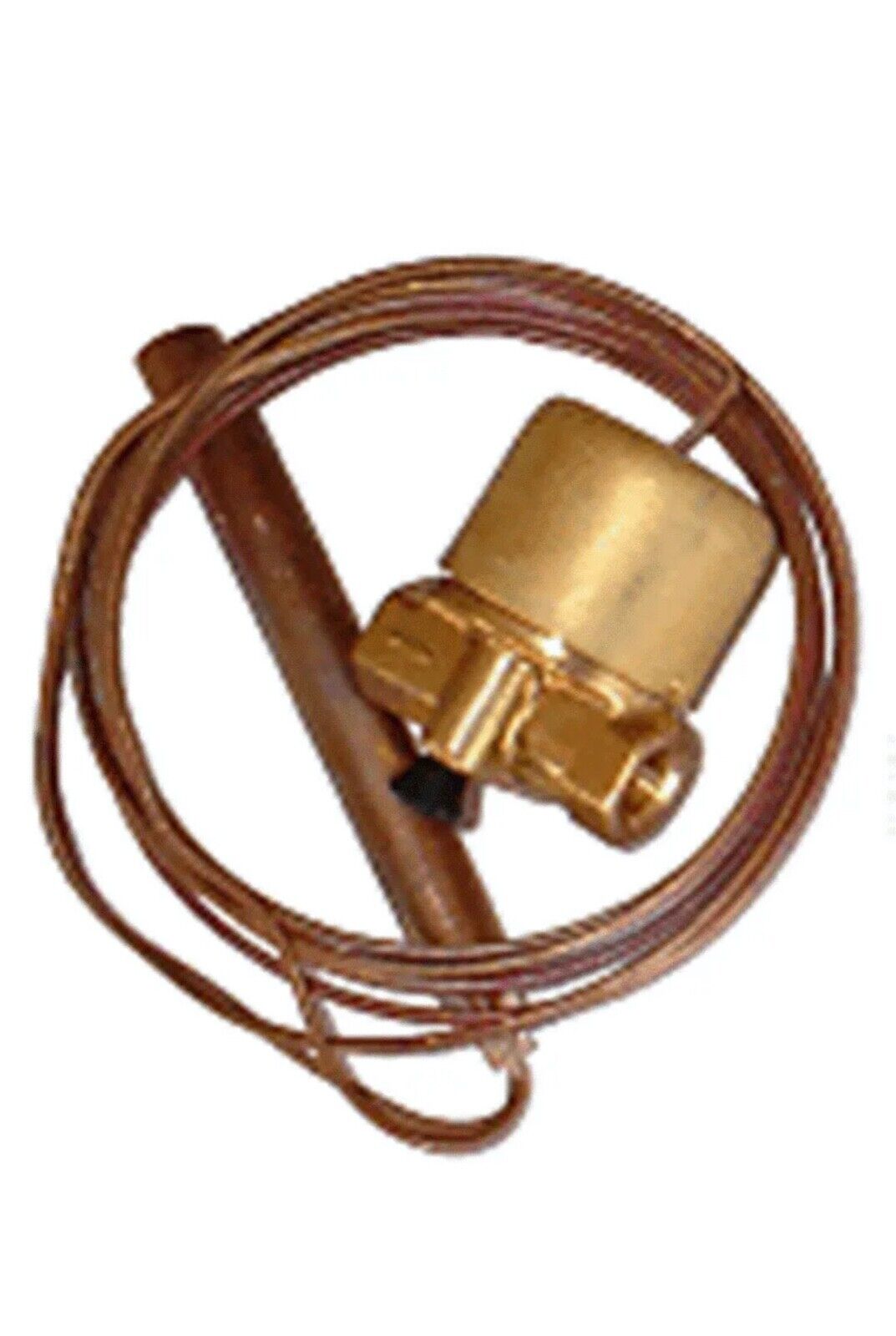

THE ROBUST NON-ELECTRIC DESIGN HAS BEEN PROVEN FOR MORE THAN 40 YEARS AND CARRIES FULL OFTEC APPROVAL AS WELL AS BS 5410 PART 1 CONFORMANCE. IT CONSISTS OF A SEALED SENSOR PHIAL WHICH SHOULD BE MOUNTED INSIDE THE APPLIANCE ABOVE THE BURNER, AND A THERMALLY-OPERATED VALVE INSTALLED OUTSIDE THE BUILDING IN THE OIL SUPPLY PIPELINE AND LINKED TO THE SENSOR BY CAPILLARY TUBING.
INSTALLATION IS STRAIGHTFORWARD, AND THE FACT THAT CAPILLARY TUBING CAN BE SUPPLIED IN LENGTHS OF UP TO 20M PROVIDES MAXIMUM FLEXIBILITY IN LOCATING THE SHUTOFF VALVE
IF TRIGGERED BY EXCESSIVE HEAT (THERE ARE TWO ALTERNATIVE TEMPERATURE SETTINGS), THE VALVE WILL SNAP CLOSED.
IT CAN THEN BE RESET MANUALLY BY PUSHING THE RESET BUTTON IN. THIS ABILITY TO TRIP AND RESET THE VALVE ENABLES TESTING TO BE CARRIED OUT AT REGULAR INTERVALS TO ENSURE THAT IT IS FUNCTIONING CORRECTLY.
IF REQUIRED, THE VALVE CAN BE CLOSED MANUALLY TO SHUT OFF THE OIL FLOW BY PULLING OUT THE RESET BUTTON.
